The semiconductor cryotherapy apparatus is a fast-developing physical therapeutic device that utilizes low temperature generated by thermoelectric cooling components for disease treatment. Featuring precise temperature control, low power consumption and compact footprint, it possesses broad application prospects in the field of rehabilitation therapy.

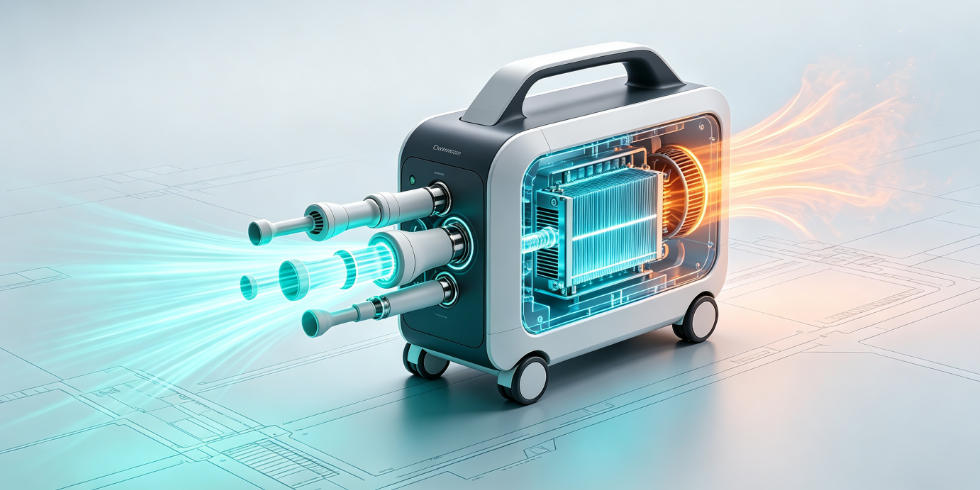

The apparatus consists of a main body, thermoelectric coolers (TECs), and multiple cryotherapy probes with different effective contact areas. In terms of overall structure, the multiple cryotherapy probes are movably connected to one end of the apparatus main body. The thermoelectric coolers are installed inside the main body, with their cold sides closely attached to the connecting end where the main body joints the movable cryotherapy probes.

When powered on, a thermoelectric cooler generates cold energy on one side (cold side) with temperature dropping, and produces heat on the other side (hot side) with temperature rising. In the semiconductor cryotherapy apparatus, the cold energy from the cold side of the TEC is transmitted to the targeted human body part through the treatment probe, achieving therapeutic effects such as temperature reduction, inflammation inhibition and vasoconstriction. The heat generated from the hot side is dissipated via the heat dissipation system. The temperature control system adjusts power supply parameters as required to precisely regulate the cooling temperature.

Application Advantages of Thermoelectric Coolers in Cryotherapy Apparatuses

1. Precise Temperature Control
Thermoelectric coolers deliver high-accuracy temperature regulation to meet diverse temperature requirements for clinical treatment, maximizing therapeutic outcomes.

2. Rapid Cooling Performance
TECs can lower the temperature within minutes, shortening treatment duration and improving operational efficiency.

3. Low Power Consumption
Thermoelectric cooling modules feature low power consumption, generally ranging from 50W to 200W. This makes them ideal for portable therapeutic devices with no need for high-power power supply connections.

4. Silent Operation
Thermoelectric cooling modules operate with near-zero noise, providing a comfortable treatment environment for patients.

5. Compact and Lightweight
The small size and light weight of TEC modules enable the therapeutic device to be designed in a more compact and flexible structure, facilitating easy operation and accurate positioning.

6. Free of Fluoride and Chemical Refrigerants
Thermoelectric cooling modules require no fluoride or other chemical refrigerants during operation, featuring superior environmental friendliness and safety — a vital advantage for medical equipment applications.
