Plate to Liquid
It is used to cool or heat either objects attached directly to the coldplate, or enclosures by attaching a thermal conductive container tothe cold plate. Heat is dissipated to a liquid on the warm side. Theliquid circuit is normally of a circulating type with a pump and aLiquid-to-Air heat exchanger removing the heat into the ambient air.By using an efficient heat exchanger and one or more Plate to LiquidAssemblies a very powerful yet compact system is created. Ourstandard assemblies are optimized for high cooling capacity andefficiency rather than maximum AT Typical applications includetemperature cycling of electronic components, laser cooling andanalytical instruments.

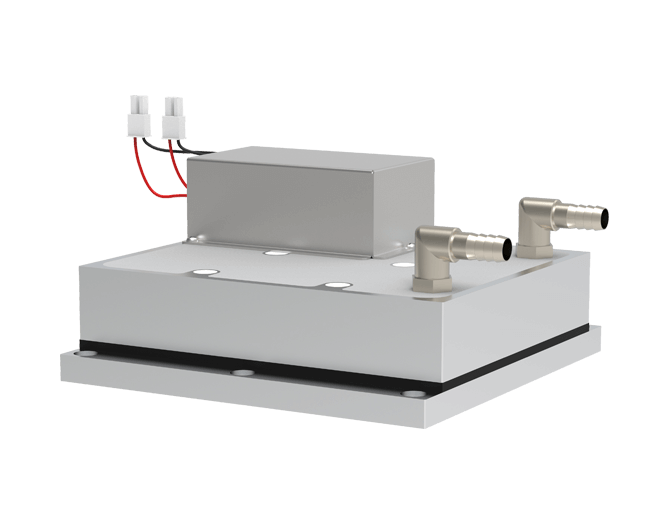

This product is a thermoelectric Cooler Assembly that provides refrigeration and heat dissipation by directly contacting the cold plate with the cooling object. The heat is removed from the hot side through liquid cooling and forced convection heat transfer. It is widely used in beauty and medical equipment, as well as laser devices. It is characterized by a compact design, small size, and high reliabilit
■Economical general use thermoelectric cooler (high performance and quality but economical)
■Thermoelectric Cooler(TEC: Peltier module) with high ΔTmax, large heat absorption, and high efficiency
■Special original products, such as one with a center hole
■Long life time with break-proof structure
■Production for custom made Thermoelectric Coolers to meet our customers purposes is possible
By adopting semiconductor cooling technology, the product's cooling efficiency has been greatly improved.
Our thermoelectric cooler assemblies feature excellent sealing performance to prevent air leakage, ensuring reliable and stable operation in various environments.
The modular design of our thermoelectric cooler assemblies provides flexibility for customization and easy maintenance, allowing for quick and efficient replacement of parts if needed.
With a compact structure, our thermoelectric cooler assemblies are space-saving and easy to integrate into different systems or devices, providing efficient temperature control in limited spaces.
Huajing's semiconductor cooling technology can be applied to medical equipment such as IVD, bioanalyzers, PCR, MRI machines, CT scanners, and X-ray machines to reduce the heat generated by the equipment, maintain stable temperature control, and ensure the accuracy and reliability of equipment operation.
Huajing offers thermal management solutions that are suitable for beauty equipment, including hair removal and cryotherapy machines, which require precise temperature control to ensure safe and effective treatment. With Huajing's solutions, these machines can maintain a stable cooling temperature and operate for a longer period of time.
Laser equipment generates high heat during operation, which can damage the equipment and affect its performance. Huajing's thermal management solutions can effectively dissipate the heat generated by laser equipment, maintain stable working temperature, and improve its performance.
