Plate to Air

Plate to Air

It is used in three key applications, including cooling or heating: 1) Objects directly on the cold plate, or objects on an additional cold plate of your own design; 2) Enclosures by attaching a thermal conductive container to the cold plate; 3) Liquids by attaching a thermal conductive tank or liquid heat sink to the cold plate. The heat is absorbed by the cold plate, pumped through the TE modules and then dissipated to the air by an air heat sink. It delivers compact and reliable cooling. Typical applications include cooling electrical devices, analytical instruments, lasers and commercial refrigeration.

Model

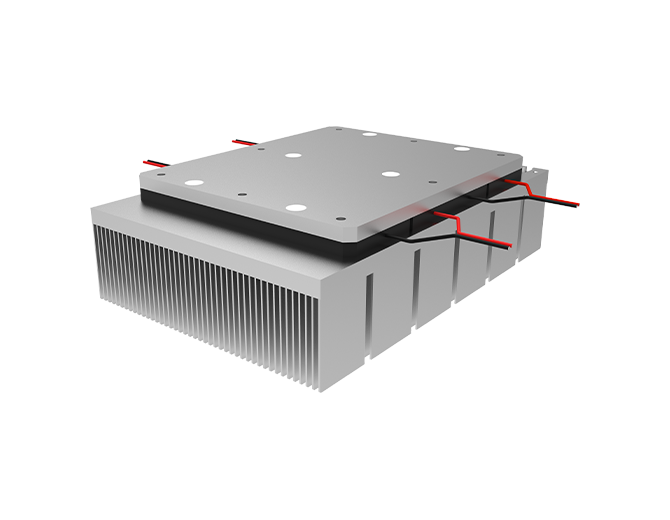

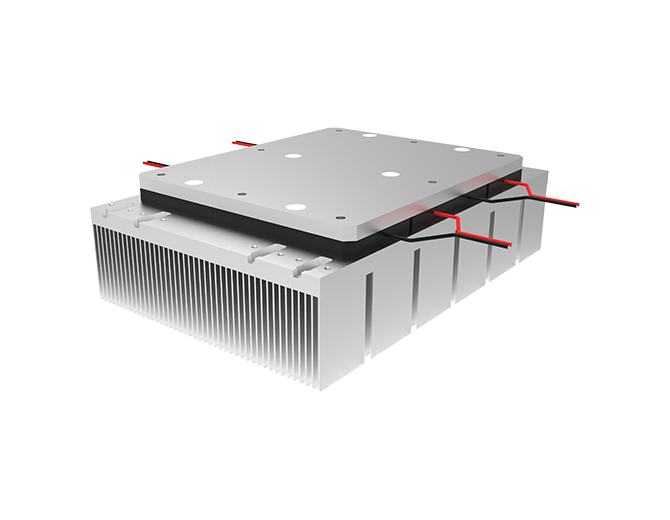

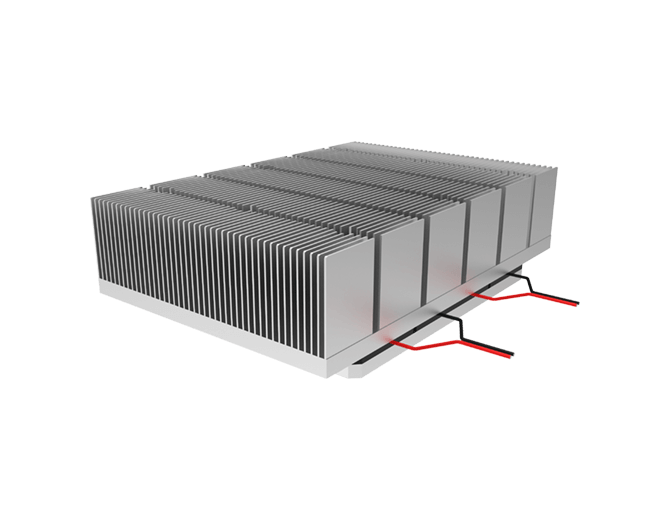

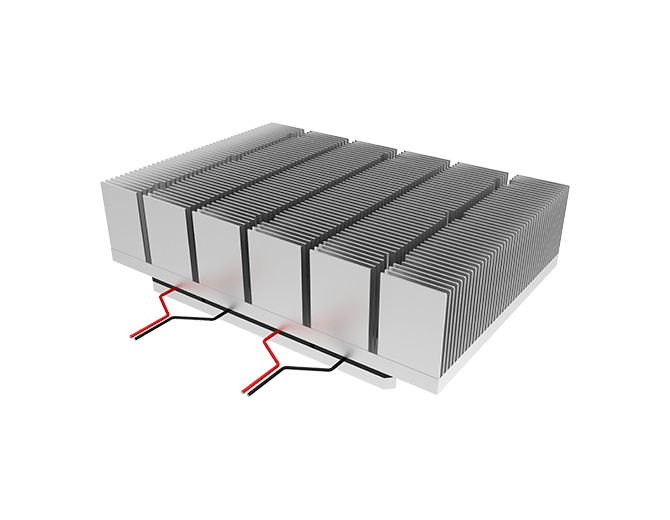

TEJ4-200XEA

TEJ4-200XEA
TEJ4-200XEA
TEJ4-200XEA
TEJ4-200XEA

Description

This product is a thermoelectric cooler assembly that utilizes air cooling and cold-side aluminum plate cooling to provide refrigeration capability. It performs heat exchange with the cooled equipment and finds wide application in medical and beauty devices as well as laser equipment. It features a compact design, small size, and high reliability.

Home > Products>TEJ4-200XEA>

Features

■Economical general use thermoelectric cooler (high performance and quality but economical)

■Thermoelectric Cooler(TEC: Peltier module) with high ΔTmax, large heat absorption, and high efficiency

■Special original products, such as one with a center hole

■Long life time with break-proof structure

■Production for custom made Thermoelectric Coolers to meet our customers purposes is possible

custom made
High Efficiency and Energy Saving

High Efficiency and Energy Saving

By adopting semiconductor cooling technology, the product's cooling efficiency has been greatly improved.

Good Sealing Effect

Good Sealing Effect

Our thermoelectric cooler assemblies feature excellent sealing performance to prevent air leakage, ensuring reliable and stable operation in various environments.

Modular Design

Modular Design

The modular design of our thermoelectric cooler assemblies provides flexibility for customization and easy maintenance, allowing for quick and efficient replacement of parts if needed.

Compact Structure

Compact Structure

With a compact structure, our thermoelectric cooler assemblies are space-saving and easy to integrate into different systems or devices, providing efficient temperature control in limited spaces.

Applications

Parameters

  • Model:

    TEJ4-200XEA

    Operating Voltage(V):

    24VDC

    Operating Current(A):

    12.3A/13.5A

    Cooling Capacity(W):

    200W(ΔT=0,Th=50℃)
  • Dimensions(mm,L x W x H)

    260×178×76mm

    Operating Temperature(℃)

    5℃~40℃

    Operating Humidity(%)

    15%~80%

    Storage Temperature(%)

    -20℃~60℃
  • Storage Humidity(%)

    15%~80%

    Net Weight(Kg)

    3.6Kg

Dimensions

TEJ4-200XEA
TEJ4-200XEA
TEJ4-200XEA
