Plate to Air

Plate to Air

It is used in three key applications, including cooling or heating: 1) Objects directly on the cold plate, or objects on an additional cold plate of your own design; 2) Enclosures by attaching a thermal conductive container to the cold plate; 3) Liquids by attaching a thermal conductive tank or liquid heat sink to the cold plate. The heat is absorbed by the cold plate, pumped through the TE modules and then dissipated to the air by an air heat sink. It delivers compact and reliable cooling. Typical applications include cooling electrical devices, analytical instruments, lasers and commercial refrigeration.

Model

TE82-080XEA

TE82-080XEA
TE82-080XEA
TE82-080XEA
TE82-080XEA

Description

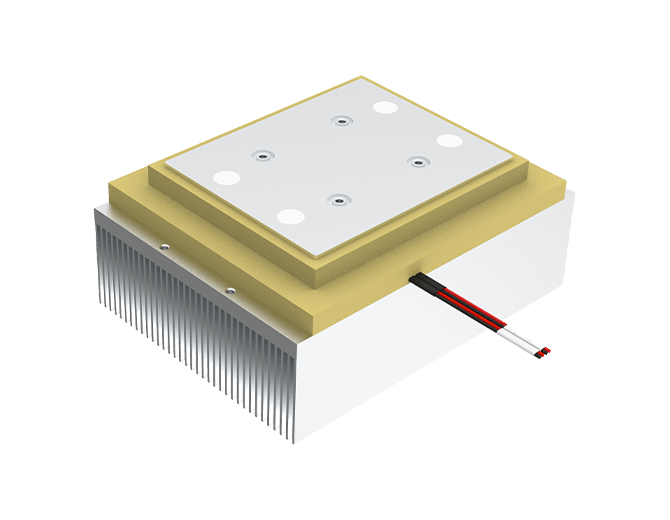

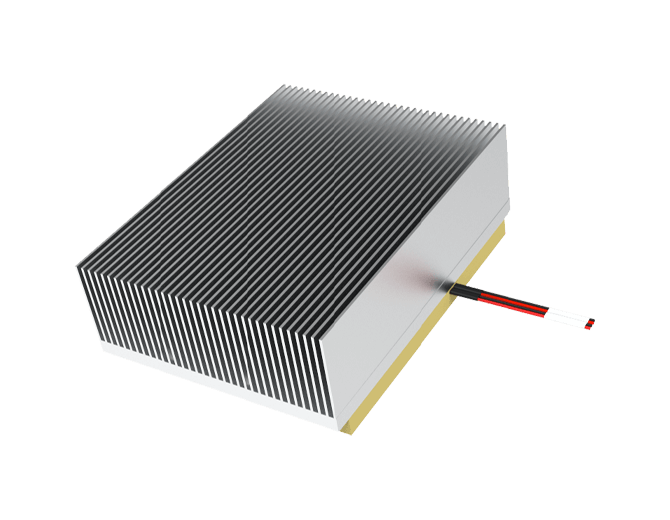

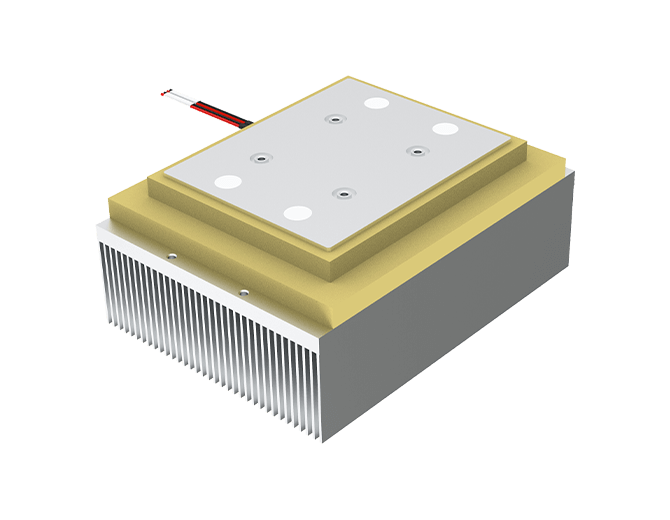

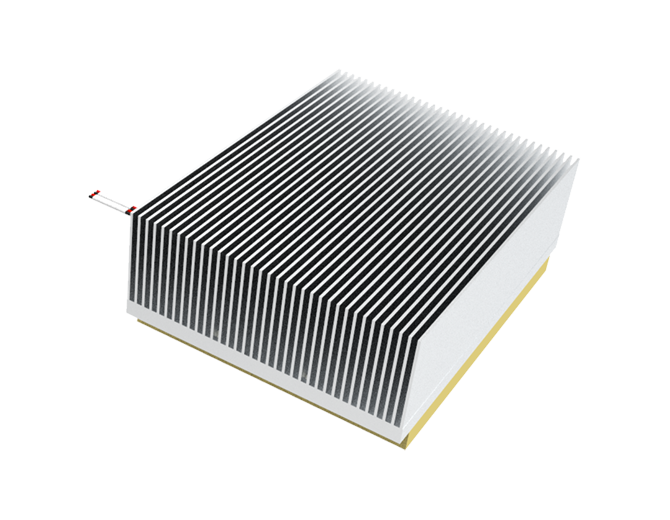

This product is a thermoelectric cooler assembly that provides cooling and heat dissipation by directly contacting the cold plate with the cooling object. The heat is then removed from the hot end through forced air cooling. It is widely used in beauty and medical equipment as well as laser devices. It is characterized by its compact design, small size, and high reliability.

Home > Products>TE82-080XEA>

Features

■Economical general use thermoelectric cooler (high performance and quality but economical)

■Thermoelectric Cooler(TEC: Peltier module) with high ΔTmax, large heat absorption, and high efficiency

■Special original products, such as one with a center hole

■Long life time with break-proof structure

■Production for custom made Thermoelectric Coolers to meet our customers purposes is possible

custom made
High Efficiency and Energy Saving

High Efficiency and Energy Saving

By adopting semiconductor cooling technology, the product's cooling efficiency has been greatly improved.

Good Sealing Effect

Good Sealing Effect

Our thermoelectric cooler assemblies feature excellent sealing performance to prevent air leakage, ensuring reliable and stable operation in various environments.

Modular Design

Modular Design

The modular design of our thermoelectric cooler assemblies provides flexibility for customization and easy maintenance, allowing for quick and efficient replacement of parts if needed.

Compact Structure

Compact Structure

With a compact structure, our thermoelectric cooler assemblies are space-saving and easy to integrate into different systems or devices, providing efficient temperature control in limited spaces.

Applications

Parameters

  • Model:

    TE82-080XEA-1

    Operating Voltage(V):

    24VDC

    Operating Current(A):

    9.0A/11.0A

    Cooling Capacity(W):

    208W(ΔT=0,Th=50℃)
  • Heat Exchange Medium

    Deionized Water

    Dimensions(mm,L x W x H)

    178X136X75mm

    Operating Temperature(℃)

    5℃~40℃

    Operating Humidity(%)

    15%~80%
  • Storage Temperature(%)

    -20℃~60℃

    Storage Humidity(%)

    15%~80%

    Net Weight(Kg)

    2.0Kg

Dimensions

TE82-080XEA
TE82-080XEA
TE82-080XEA
TE82-080XEA
