Liquid to Air

Liquid to Air

It is used to cool or heat a liquid or gas flowing through a heat sink. The liquid heat sink is designed for a recycling system. The heat is absorbed by the liquid heat sink, pumped through the TE modules, and then dissipated to the air by an air heat sink. Typical applications include cooling of tissue or other areas of the body in laser or microwave thermo therapy; Cooling or heating in capillary electrophoresis; Cooling of power lasers and other sensitive electronics.

Model

TE04-150XEL

TE04-150XEL
TE04-150XEL
TE04-150XEL
TE04-150XEL

Description

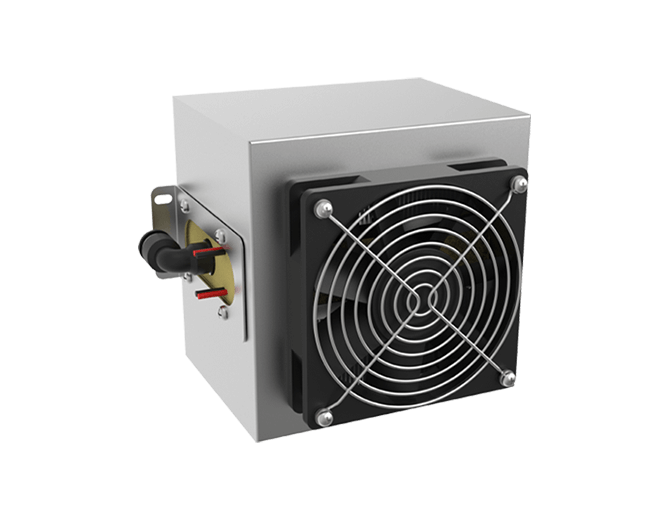

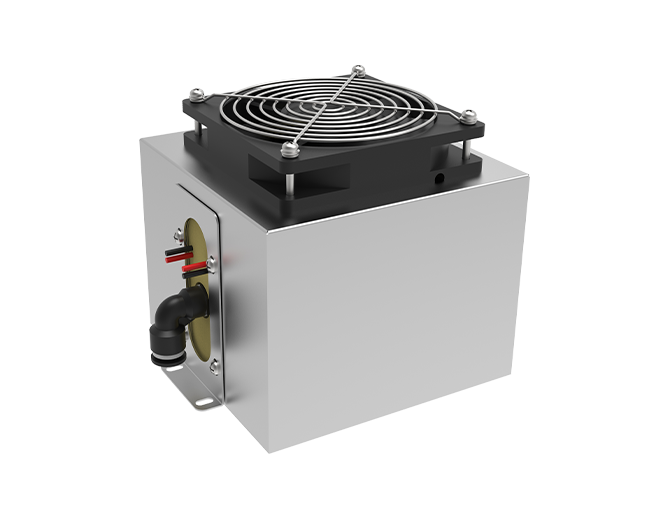

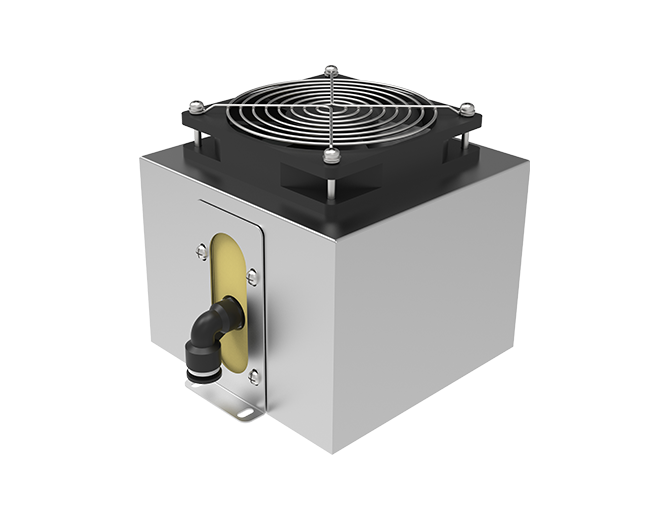

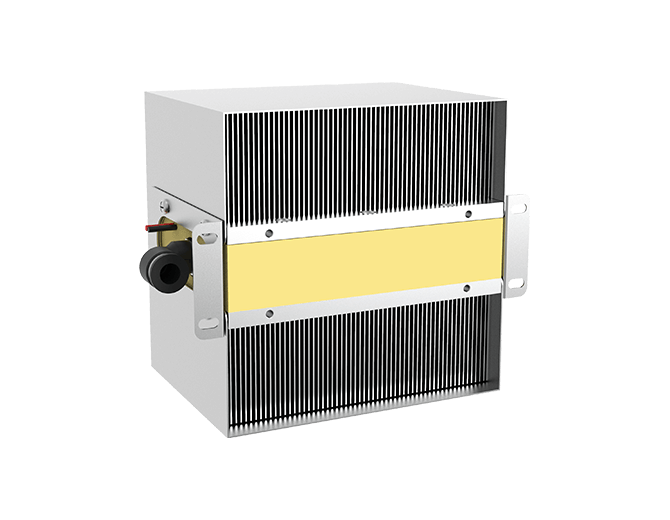

The TE04-150XEL-51 is a thermoelectric cooler assembly that provides cooling capacity through air cooling, liquid circulation cooling, and heat transfer with the equipment to be cooled. Widely used in medical beauty equipment, laser equipment. Compact structure, small volume, high reliability.

Home > Products>TE04-150XEL>

Features

■Economical general use thermoelectric cooler (high performance and quality but economical)

■Thermoelectric Cooler(TEC: Peltier module) with high ΔTmax, large heat absorption, and high efficiency

■Special original products, such as one with a center hole

■Long life time with break-proof structure

■Production for custom made Thermoelectric Coolers to meet our customers purposes is possible

custom made
High Efficiency and Energy Saving

High Efficiency and Energy Saving

By adopting semiconductor cooling technology, the product's cooling efficiency has been greatly improved.

Good Sealing Effect

Good Sealing Effect

Our thermoelectric cooler assemblies feature excellent sealing performance to prevent air leakage, ensuring reliable and stable operation in various environments.

Modular Design

Modular Design

The modular design of our thermoelectric cooler assemblies provides flexibility for customization and easy maintenance, allowing for quick and efficient replacement of parts if needed.

Compact Structure

Compact Structure

With a compact structure, our thermoelectric cooler assemblies are space-saving and easy to integrate into different systems or devices, providing efficient temperature control in limited spaces.

Applications

Parameters

  • Model:

    TE04-150XEL

    Operating Voltage(V):

    24VDC

    Operating Current(A):

    8.5A/11.0A

    Cooling Capacity(W):

    150W(ΔT=0,Th=27℃)
  • Fan Rated Speed( rpm/min )

    3500rpm/min

    Noise Level(dB)

    ≤54dB

    Water Outlet Size

    Push-In Fitting (10mm Outer Diameter Rubber Hose)

    Heat Transfer Medium

    Deionized Water
  • Dimensions(mm,L x W x H)

    185.4X155X150.5mm

    Operating Temperature(℃)

    5℃~40℃

    Operating Humidity(%)

    15%~80%

    Storage Temperature(℃)

    -20℃~60℃
  • Storage Humidity(%)

    15%~80%

    Net Weight(Kg)

    3.5Kg

Dimensions

TE04-150XEL
TE04-150XEL
TE04-150XEL
TE04-150XEL
