Core Technology Advantages
Parameter | Conventional Metal Heaters | HJ-TC PI Heating Film | Improvement |
Thickness | 0.3-1.0 mm | 0.05-0.2 mm | 6× thinner |
Bend Radius | >10 mm | <3 mm | 70% more flexible |
Power Density | 0.5-1.5 W/cm² | 1.5-3.0 W/cm² | 2× efficiency |
Response Time | 10-30 s | 3-8 s | 75% faster |
Temperature Uniformity | ±3.0°C | ±1.5°C | 50% more precise |
Dynamic Flex Cycles | <1,000 | >10,000 | 10× durability |
Key Innovations
1. Multilayer Architecture
Nanoparticle-enhanced PI substrate (20% higher thermal conductivity)
Precision silver ink patterning (Rz <5μm surface roughness)
Embedded NTC sensors (±0.5°C closed-loop control)
2. Thermal-Mechanical Optimization
FEA-validated trace geometry reduces peak stress by 35%
Anisotropic thermal interface materials (0.4 K·cm²/W resistance)
Industry-Specific Applications
1.Medical Wearables
Continuous glucose monitors: Maintains 37±0.3°C for enzyme stability
Cardiac patches: 0.1 mm thick, survives 200,000 chest expansion cycles
2.Consumer Electronics
AR gloves: 5-zone heating with 100 ms response
Smart rings: 0.3W standby power for all-day heating
Technical Differentiation
Electro-Thermal Efficiency
92% energy conversion ratio (vs. 78% in metal foil heaters)
PWM-controlled power delivery (0.1W resolution)
Reliability Performance
Passes MIL-STD-810G mechanical shock testing
10-year lifespan at 85°C/85% RH
Next-Gen Development
Graphene hybrid electrodes(target: 5 W/cm² power density)
Self-regulating PTC behavior(eliminates controller need)
Stretchable variants(300% strain capability)

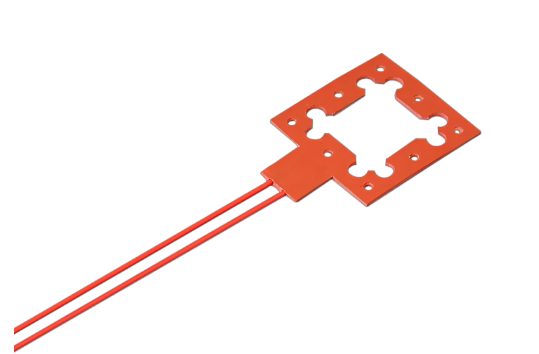

Explore Solutions:HJ-TC PI Heating Films
